4. Install the ink tank and connect the ink tube

    Install and fix the screws on the main ink tank bracket, then put the ink tanks in order,

   and connect the corresponding color ink tanks and the corresponding marked ink tubes.

   The ink tank of white ink is connected to the power cord of the white ink stirring motor.

   Install the battery in the liquid level alarm buzzer of each ink tank, insert the connection

   terminal.（Refer to Step 13 for adding ink）

   Refer to the following video：

As shown:

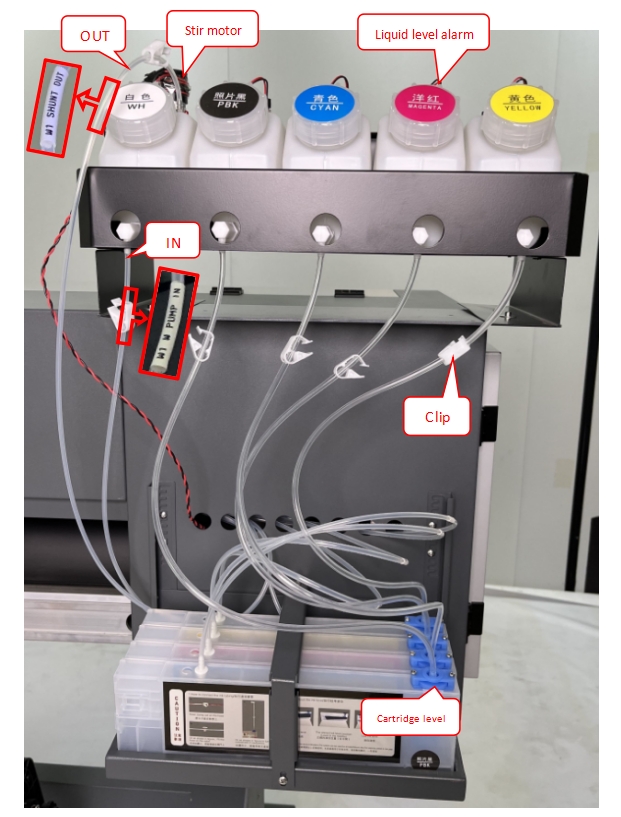

The ink tube labeled "W1 W PUMP IN" is connected to the lower end of the white ink tank,

and the ink tube labeled "W1 SHUNT OUT" is connected to the top end of the white ink tank.

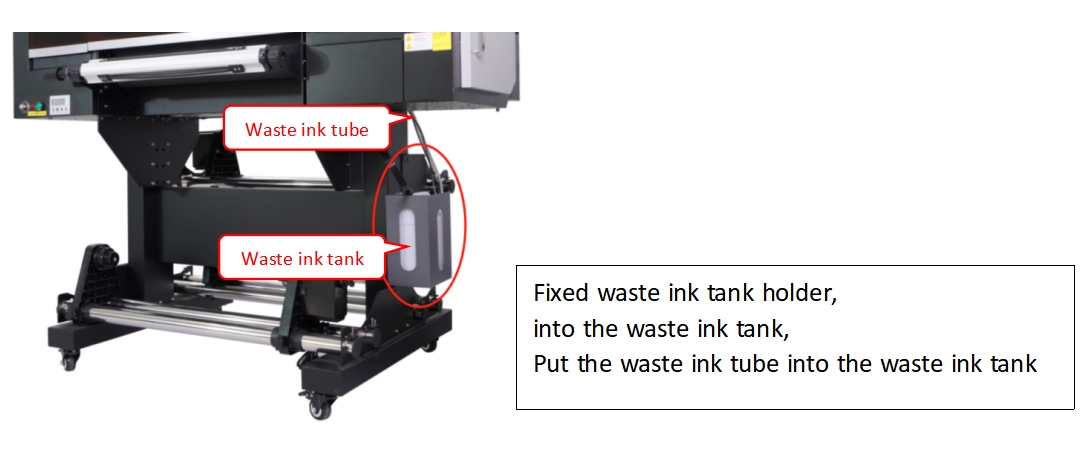

Waste ink tank install，As shown:
